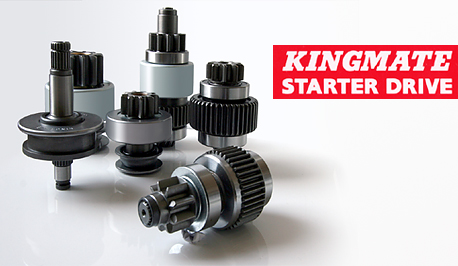

STARTER DRIVES
KINGMATE
KINGMATE
No MODEL Teeth CW:Clockwise
CCW:Counter Clockwise
Length (mm) G: Pinion O.D. (mm)
SPL: Number of splinas
ID: Pinion I.D. (mm)
OD: Drive O.D. (mm)
1 1-23500-001-0(6BG1) 11T CW L84 G40 SPL12 ID15
2 1-23500-006-0(10PC1) 11T CW L97 G48 SPL15 ID19
3 5-81123-004-0(C330) 9T CW L78 G35 SPL12 ID14
4 5-81123-015-0(4BA1) 9T CW L70 G35 SPL12 ID14
5 5-81124-003-0(C190) Res. type 9T CW L102 G32 OD54
6 5-81124-004-0 11T CW L146 G40 OD61
7 8-94334-976-0(4BC2) Red. Type 9T CW L100 G35 OD64
8 8-97025-671-0 11T CCW L115 G40
9 9-8212-1234-0 9T CW L70 G35 SPL12 ID14
10 9-8212-1238-0(C240) 9T CW L70 G32 SPL12 ID14
11 M191T57072(4DR5) 11T CW L66 G35 SPL10 ID14
12 M191T65171(8DC9) 13T CW L117 G56 SPL10 ID17
13 M191T66171(8DC9) 13T CW L119 G56 SPL10 ID17
14 M191T67585(4D34)   CW L110 T20 SPL5 OD59
15 M191T72672(4D33)   CW L126/144 T20 OD66
16 M191X69871(4M40)   CW L90 T20 SPL5 OD56
17 M357T71671(4D30)   CW L117/135 T20 OD66
18 M357T72672(4D32)   CW L126/144 T20 OD66
19 M357T72672(4D32) w/GEAR HEAD SET SAME AS ITEM NO:18
20 M357T73571(6D15/6D16)   CW L139/159 T20 OD66
21 2240-2501(4HF1) Red. Type 11T CCW L115 G40
22 2240-6501(4HF1) Red. type 11T CCW L103 G40
23 2250-95004(4HF1) Red. Type 11T CCW L132 G40
24 28011-54010 11T CW L146 G40 OD61
