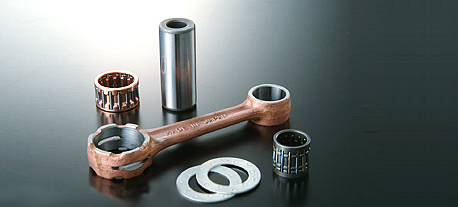

Con.-Rod Kit

TKRJ

MODEL	OEM	CODE	STROKE	REMARKS
C-50/C-70/C-75	-036-	BH0010A	4
C-50D	-GK4-300	BH0020A	4
C-50E/F/G	-GK4-760	BH0030A	4
DIO/SK-50	-GWO-	BH0040A	2
DIO/SK-50 W/W	-GWO-	BH0040B	2
DIO/SK-50M	-GAH-	BH0050A	2
DIO/SK-50M W/W	-GAH-	BH0050B	2
MB-50/MT-50	-166-	BH0060A	2
MB-50/MT-50 W/W	-166-	BH0060B	2
MBX-50/MTX-50	-GE2-	BH0070A	2
MBX-50/MTX-50 W/W	-GE2-	BH0070B	2
NC-50/NH-50/NY-50	-GC7-	BH0080A	2
NC-50/NH-50/NY-50 W/W	-GC7-	BH0080B	2
PC-50K1	-063-	BH0090A	4
NE-50/SA-50/TACT	-GS7-	BH0100A	2
NE-50/SA-50/TACT W/W	-GS7-	BH0100B	2
C-70C/C-90C/C-90IID	-GB5-	BH0110A	4
C-50B/CD-70C/CD-80	-GB2-	BH0120A	4
ELITE-80/CE-80/CH-80	-GE1-	BH0130A	4
NH-80/NH-80MD/LEAD-80	-GC8-	BH0140A	2
NH-80/NH-80MD/LEAD-80 W/W	-GC8-	BH0140B	2
C-90C,B/C-86Z	-178-	BH0150A	4
C-90/CS-90/CT-90	-028-	BH0160A	4
C-92/C-95	-202-	BH0170A	4
MD-90H	-121-	BH0172A	4
NH-90/NH-90H	-GW3-	BH0175A	2
NH-90/NH-90H W/W	-GW3-	BH0175B	2
C-100D/D	-001-	BH0180A	4
C-100E/C90CWR/CD-100/DREAM	-GF6-	BH0190A	4
CD100 SPLENDOR	-KCC-	BH0191A	4
EX5 CLASS1/WAVE110/125	-KFL-	BH0192A	4	Same as KPH
CB-100/S-100OLD/SL-100	-107-010	BH0200A	4
CB-100K2	-107-712	BH0210A	4
MB-100/H-100S	-168-	BH0220A	2
MB-100/H-100S W/W	-168-	BH0220B	2
XL-100S	-028-	BH0230A	4
CT-110	-459-	BH0240A	4
LS-110/LS-125/BEAT	-KE1-	BH0250A	2
LS-110/LS-125/BEAT W/W	-KE1-	BH0250B	2
S-110 DX,NEW/CB-100S	-383-	BH0260A	4
WAVE100/EX5 DREAM	-KFM-	BH0265A	4
CB-125S	-324-010	BH0270A	4
CBX-125F	-KK6-	BH0275A	4
CB-125T/CD-125T	-402-	BH0290A	4
CG-125/CB-125S2	-383-	BH0300A	4
CG125 TITAN 2002	-KGA-	BH0305A	4
XL-125S/ATC-200	-437-	BH0320A	4
XL-125S/ATC-200 W/W	-437-	BH0320B	4
HX-135/MBX-125/MTX-125	-KE1-	BH0330A	2
HX-135/MBX-125/MTX-125 W/W	-KE1-	BH0330B	2
GL-145/XL-125R/GL-PRO	-446-	BH0340A	4
GL-145/XL-125R/GL-PRO W/W	-446-	BH0340B	4
NSR-150	-KW6-	BH0350A	2
NSR-150 W/W	-KW6-	BH0350B	2
CG-150	-KRM-	BH0355A	4
CD-175	-028-	BH0360A	4
CD-185,195,200	-418-	BH0370A	4
XL-185S	-427-	BH0380A	4
XL-250S/CB-250RS	-428-	BH0390A	4
CG125 TODAY/XLR-125,200	-KYO-	BH0410A	4
CG125 TODAY/XLR-125,200 W/W	-KYO-	BH0410B	4
CBX-200	-KYO-	BH0415A	4
CBX-200 W/W	-KYO-	BH0415B	4
MTX-200	-KJ1-	BH0417A	4
XR-250R/XLR-250	-KT1-	BH0420A	4
XR-250R/XLR-250 W/W	-KT1-	BH0420B	4
CR-250	-KS7-	BH0421A	4
CR-250 W/W	-KS7-	BH0421B	4
XLR-250R	-KK1-	BH0422A	4
XLR-250R W/W	-KK1-	BH0422B	4
CD-250T	-KB4-	BH0423A	4
XL-500	-429-	BH0500A	4
XL-500 W/W	-429-	BH0500B	4
XR-600	-MK5-	BH0600A	4
XR-600 W/W	-MK5-	BH0600B	4

MODEL	OEM	CODE	STROKE	REMARKS
DT50/V50/YB50/LB80	3R1-	BY0010A	2	C/PIN:257
DT50/V50/YB50/LB80 W/W	3R1-	BY0010B	2	C/PIN:257
DT-50LC/RD-50LC	3R1-	BY0015A	2	C/PIN:4VO
DT-50LC/RD-50LC W/W	3R1-	BY0015B	2	C/PIN:4VO
PASSOL/SA-50/JOG-50	2E9-	BY0020A	2
PASSOL/SA-50/JOG-50 W/W	2E9-	BY0020B	2
T-50B/C	22F-	BY0030A	4
YG-1/YF-1	126-	BY0060A	2	C/PIN:122
YG-1/YF-1 W/W	126-	BY0060B	2	C/PIN:122
T-80	22K-	BY0070A	4
Y-80/V-80/PW-80	1W7-	BY0080A	2
Y-80/V-80/PW-80 W/W	1W7-	BY0080B	2
YB-80/FS-80	180-	BY0090A	2
YB-80/FS-80 W/W	180-	BY0090B	2
T-90	4GL-	BY0095A	4
Y-90/V-90	626-	BY0100A	2
Y-90/V-90 W/W	626-	BY0100B	2
RS-100/AG-100	304-	BY0110A	2
RS-100/AG-100 W/W	304-	BY0110B	2
BWS-100	4VP-	BY0115A	2
BWS-100 W/W	4VP-	BY0115B	2
RX-100/DT-100X	558-	BY0120A	2
RX-100/DT-100X W/W	558-	BY0120B	2
RX-100 INDIA	36L-	BY0121A	2
RX-100 INDIA W/W	36L-	BY0121B	2
Y-100	2JG-	BY0130A	2
Y-100 W/W	2JG-	BY0130B	2
YB-100/YL2G	164-	BY0140A	2
YB-100/YL2G W/W	164-	BY0140B	2
CRYPTON	4ST-	BY0141A	4
SPARK-110	5TN-	BY0145A	4
RX-115/RX-S	4X8-	BY0150A	2
RX-115/RX-S W/W	4X8-	BY0150B	2
NOUVO-115	5MX-	BY0155A	4
DT-125/2	559-	BY0160A	2
DT-125/2 W/W	559-	BY0160B	2
DT-125FB	248-	BY0170A	2
DT-125FB W/W	248-	BY0170B	2
DT-125E,F/DT-125MX	2A6-	BY0180A	2
DT-125E.F/DT-125MX W/W	2A6-	BY0180B	2
DT-125K/RX-K/RX-135	1VO-	BY0190A	2
DT-125K/RX-K/RX-135 W/W	1VO-	BY0190B	2
DT-125YPVS	34X-	BY0200A	2	C/PIN:3M5
DT-125YPVS W/W	34X-	BY0200B	2	C/PIN:3M5
RD-125/RDC-125	416-	BY0210A	2
RD-125/RDC-125 W/W	416-	BY0210B	2
RD-125LC	3R2-	BY0220A	2
RD-125LC W/W	3R2-	BY0220B	2
RD-125YPVS	1GU-	BY0230A	2
RD-125YPVS W/W	1GU-	BY0230B	2
RS-125/YB125 SUPER	479-	BY0240A	2
RS-125/YB125 SUPER W/W	479-	BY0240B	2
RX-Z/RXZ-135	55K-	BY0250A	2
RX-Z/RXZ-135 W/W	55K-	BY0250B	2
SR-125/XT-125	5NO-	BY0255A	4
TZR-125	2RH-	BY0260A	2
TZR-125 W/W	2RH-	BY0260B	2
XC-125/BELUGA	50M-	BY0264A	4
Y-125Z	5BU-	BY0265A	2
Y-125Z W/W	5BU-	BY0265B	2
YBR-125	4LS-	BY0266A	4
TZR-150/TZM-150	3RR-	BY0267A	2
TZR-150/TZM-150 W/W	3RR-	BY0267B	2
LC-135	5YP-	BY0268A	4
VR-150	2JK-	BY0270A	2
VR-150 W/W	2JK-	BY0270B	2
YB-125E	137-	BY0280A	2
YB-125E W/W	137-	BY0280B	2
DT-175E/F/G	2A6-	BY0290A	2
DT-175E/F/G W/W	2A6-	BY0290B	2
DT-175K	1VO-	BY0300A	2
DT-175K W/W	1VO-	BY0300B	2
DT-200/YFS-200	43G-	BY0305A	2
DT-200/YFS-200 W/W	43G-	BY0305B	2
RD-200	397-	BY0310A	2
RD-200 W/W	397-	BY0310B	2
XT-200/TW-200E/AG-200	15A-	BY0315A	4
XT-225	29U-	BY0318A	4
XT-225 W/W	29U-	BY0318B	4
DT-250/YZ-250	498-	BY0320A	2
DT-250/YZ-250 W/W	498-	BY0320B	2
RD-250/RD-350	360-	BY0330A	2
RD-250/RD-350 W/W	360-	BY0330B	2
RD-250LC	4LO-	BY0340A	2
RD-250LC W/W	4LO-	BY0340B	2
RD-250YPVS	29L-	BY0345A	2
RD-250YPVS W/W	29L-	BY0345B	2
RD-350LC	4LO-	BY0350A	2
RD-350LC W/W	4LO-	BY0350B	2
RD-350YPVS	29L-	BY0355A	2
RD-350YPVS W/W	29L-	BY0355B	2
XT-500	583-	BY0500A	4
XT-600	3TB-	BY0550A	4
XS-650	447-	BY0600A	4
XS-650 W/W	447-	BY0600B	4

MODEL	OEM	CODE	STROKE	REMARKS
A-50/AC-50/AP-50	-35000	BS0030A	2	C/PIN:S-06100
A-50/AC-50/AP-50 W/W	-35000	BS0030B	2	C/PIN:S-06100
AD-50,60/AE-50,60	-37B01	BS0040A	2
AD-50,60/AE-50,60 W/W	-37B01	BS0040B	2
CS-50/GEMMA-50	-46500	BS0050A	2
CS-50/GEMMA-50 W/W	-46500	BS0050B	2
FB-50	-09811	BS0060A	4
F-50/FR-50	-35000	BS0070A	2	C/PIN:S-19000
F-50/FR-50 W/W	-35000	BS0070B	2	C/PIN:S-19000
FA-50/FZ-50	-04001	BS0080A	2
FA-50/FZ-50 W/W	-04001	BS0080B	2
K-50/TS-50ER/RV-50	-35000	BS0090A	2	C/PIN:S-13100
K-50/TS-50ER/RV-50 W/W	-35000	BS0090B	2	C/PIN:S-13100
AY-50/KATANA	-04710	BS0110A	2
AY-50/KATANA W/W	-04710	BS0110B	2
DS-80/RM-80	-14001	BS0120A	2
DS-80/RM-80 W/W	-14001	BS0120B	2
A-80/FA-80/FR-80	-05001	BS0130A	2
A-80/FA-80/FR-80 W/W	-05001	BS0130B	2
FB-80 II	-02A02	BS0140A	4
FB-80 I	-02A02	BS0141A	4
RC-80	-35500	BS0150A	2
RC-80 W/W	-35500	BS0150B	2
CS-90/GEMMA-80	-07901	BS0165A	2
CS-90/GEMMA-80 W/W	-07901	BS0165B	2
FB-90	-09D01	BS0167A	4
RV-90	-23000	BS0170A	2
RV-90 W/W	-23000	BS0170B	2
TS-90/TS-100	-25001	BS0180A	2
TS-90/TS-100 W/W	-25001	BS0180B	2
A-100	-12002	BS0190A	2	C/PIN:S-03300
A-100 W/W	-12002	BS0190B	2	C/PIN:S-03300
B-100P/B-120	-11001	BS0200A	2
B-100P/B-120 W/W	-11001	BS0200B	2
FB-100	-30A01	BS0210A	4
GP-100/GP-125	-12002	BS0220A	2	C/PIN:S-03001
GP-100/GP-125 W/W	-12002	BS0220B	2	C/PIN:S-03001
GT-100	-12002	BS0230A	2	C/PIN:S-25001
GT-100 W/W	-12002	BS0230B	2	C/PIN:S-25001
AX-100/AX-100D/TR-S RACER	-23411	BS0240A	2
AX-100/AX-100D/TR-S RACER W/W	-23411	BS0240B	2
TS-100ERZ/TS-125ERZ	-12002	BS0250A	2	C/PIN:S-48700
TS-100ERZ/TS-125ERZ W/W	-12002	BS0250B	2	C/PIN:S-48700
V-100/AG-100	-04C00	BS0260A	2
V-100/AG-100 W/W	-04C00	BS0260B	2
FD-110XC	-09G00	BS0263A	4
GSX-110/FD-110/FD-115 VIVA	-30D01	BS0266A	4
GSX-110/FD-110/FD-115 VIVA W/W	-30D01	BS0266B	4
RG-110/RU-110	-21D10	BS0270A	2
RG-110/RU-110 W/W	-21D10	BS0270B	2
AX-115S	-05B00	BS0272A	2
AX-115S W/W	-05B00	BS0272B	2
FX-125	-35C01	BS0274A	4
GP-125X4	-36A10	BS0275A	2	C/PIN:S-39500
GP-125X4 W/W	-36A10	BS0275B	2	C/PIN:S-39500
GS-125E/GN-125/SX-125R	-05821	BS0277A	4
GS-125E/GN-125/SX-125R W/W	-05821	BS0277B	4
GT-125	-14001	BS0280A	2
GT-125 W/W	-14001	BS0280B	2
K-125	-08003	BS0290A	2
K-125 W/W	-08003	BS0290B	2
RG-125FW	-36A10	BS0300A	2	C/PIN:S-36A00
RG-125FW W/W	-36A10	BS0300B	2	C/PIN:S-36A00
RG-V/TX-150	-12B01	BS0310A	2
RG-V/TX-150 W/W	-12B01	BS0310B	2
TR-125	-12002	BS0320A	2	C/PIN:S-39301
TR-125 W/W	-12002	BS0320B	2	C/PIN:S-39301
TS-125A	-12002	BS0330A	2	C/PIN:S-28000
TS-125A W/W	-12002	BS0330B	2	C/PIN:S-28000
TS-125ER	-12002	BS0340A	2	C/PIN:S-48001
TS-125ER W/W	-12002	BS0340B	2	C/PIN:S-48001
TS-125X	-36A10	BS0350A	2	C/PIN:S-14501
TS-125X W/W	-36A10	BS0350B	2	C/PIN:S-14501
TR-Z	-39811	BS0360A	2
TR-Z W/W	-39811	BS0360B	2
VS-125	-20E10	BS0365A	4
FX-150	-05F00	BS0368A	4
VS-150	-20E00	BS0369A	4
TS-185ER	-93000	BS0380A	2
TS-185ER W/W	-93000	BS0380B	2
B-200X5/GT-250X7	-12002	BS0390A	2	C/PIN:S-03001
B-200X5/GT-250X7 W/W	-12002	BS0390B	2	C/PIN:S-03001
DR-200E	-42A00	BS0391A	4
GT-250A/M	-11001	BS0400A	2
GT-250A/M W/W	-11001	BS0400B	2
RH-250	-13A0A	BS0415A	4
TS-250ER	-16400	BS0420A	2
TS-250ER W/W	-16400	BS0420B	2

MODEL	OEM	CODE	STROKE	REMARKS
AR-50/AR-80/AE-50	-5020	BK0010A	2
AR-50/AR-80/AE-50 W/W	-5020	BK0010B	2
AN-80,90/AMX-100/JOY	-5023	BK0020A	4
AN-80,90/AMX-100/JOY W/W	-5023	BK0020B	4
G-7T/KE,KH-100/KD-80,100	-024	BK0030A	2
G-7T/KE,KH-100/KD-80,100 W/W	-024	BK0030B	2
GA-1/GA-2	-008	BK0040A	2
GA-1/GA-2 W/W	-008	BK0040B	2
GA-1B	-019	BK0050A	2
GA-1B W/W	-019	BK0050B	2
AM105-D1/MAGIC	-5078	BK0055A	2	ROD:K-1148
AM105-D1/MAGIC W/W	-5078	BK0055B	2	ROD:K-1148
GTO-110/KH-110A	-5013	BK0060A	2
GTO-110/KH-110A W/W	-5013	BK0060B	2
AH-115A/K-1	-5085	BK0070A	2
AH-115A/K-1 W/W	-5085	BK0070B	2
KRISS/AN-110/KAZE	-5088	BK0080A	4
KRISS/AN-110/KAZE W/W	-5088	BK0080B	4
AR-125A1	-5027	BK0090A	2
AR-125A1 W/W	-5027	BK0090B	2
AR-125C	-5044	BK0100A	2
AR-125C W/W	-5044	BK0100B	2
B-1L/KC-125	-004	BK0120A	2
B-1L/KC-125 W/W	-004	BK0120B	2
GTO-125/KH-125D	-5021	BK0130A	2
GTO-125/KH-125D W/W	-5021	BK0130B	2
KE-125A/KH-125A	-5003	BK0140A	2
KE-125A/KH-125A W/W	-5003	BK0140B	2
KMX-125	-5069	BK0150A	2
KMX-125 W/W	-5069	BK0150B	2
KR-150	-5079	BK0180A	2
KR-150 W/W	-5079	BK0180B	2
KE-175B/KH-175B/KE-175B-1	-039	BK0190A	2
KE-175B/KH-175B/KE-175B-1 W/W	-039	BK0190B	2
KE-175D	-5012	BK0200A	2
KE-175D W/W	-5012	BK0200B	2
JAGUH	-1235	BK0201A	2
JAGUH W/W	-1235	BK0201B	2
KDX-125F/KDX-200	-5071	BK0205A	2	ROD:K-1146
KDX-125F/KDX-200 W/W	-5071	BK0205B	2	ROD:K-1146
KZ-200	-5006	BK0210A	2
KZ-200 W/W	-5006	BK0210B	2
BAJAJ CALIBER		BK9000A	4

MODEL	OEM	CODE	STROKE	REMARKS
27-1500	27-1500	BZ0010A	2	MEXICAN MODEL
27-1500 W/W	27-1500	BZ0010B	2	MEXICAN MODEL
27-1700	27-1700	BZ0020A	2	MEXICAN MODEL
27-2400 OLD	27-2400	BZ0030A	4	MEXICAN MODEL
27-2400 OLD W/W	27-2400	BZ0030B	2	MEXICAN MODEL
27-2400 NEW	27-2400	BZ0040A	2	MEXICAN MODEL
27-2400 NEW W/W	27-2400	BZ0040B	2	MEXICAN MODEL
27-2600 NEW	27-2600	BZ0050A	2	MEXICAN MODEL
TVS VICTOR		BZ0100A	4	INDIAN MODEL
